Irma Vep Chandelier

Triad Stage’s production of Irma Vep opened last Saturday. Anyone who has ever propped that show knows it has a ton of tricks and unique pieces. On top of all that, our production also had a massive Gothic ring chandelier. Our scenic designer, Robin Vest, drew a four-foot diameter chandelier with nine candles. I knew I would never be able to afford such a piece (even if I could find it), so it was off to the shop to construct it from scratch.

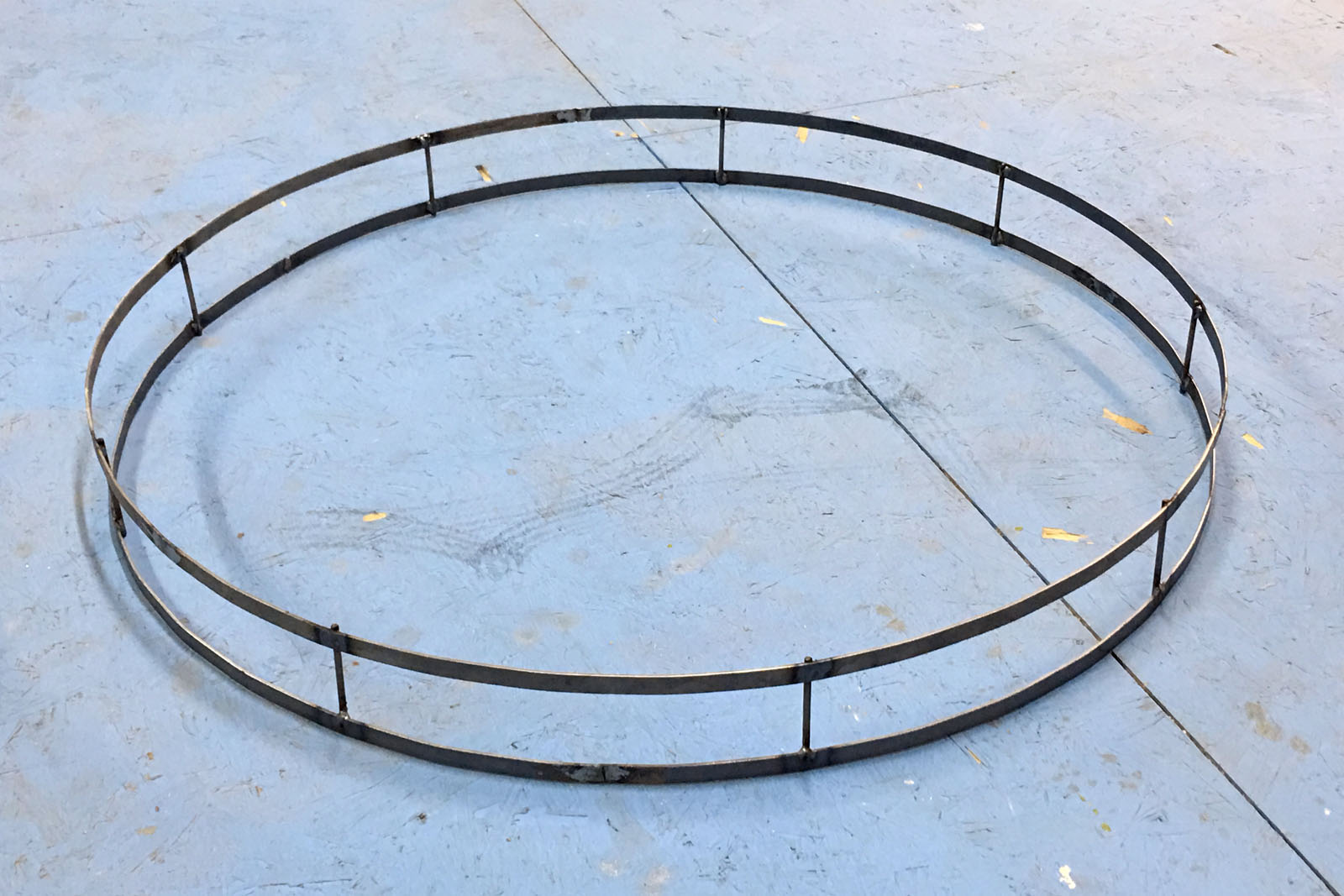

Steel frame
Steel frame

First up was the ring itself. I bent two bars of steel using my ring bender, and welded them into a single wheel connected by short rods of steel.

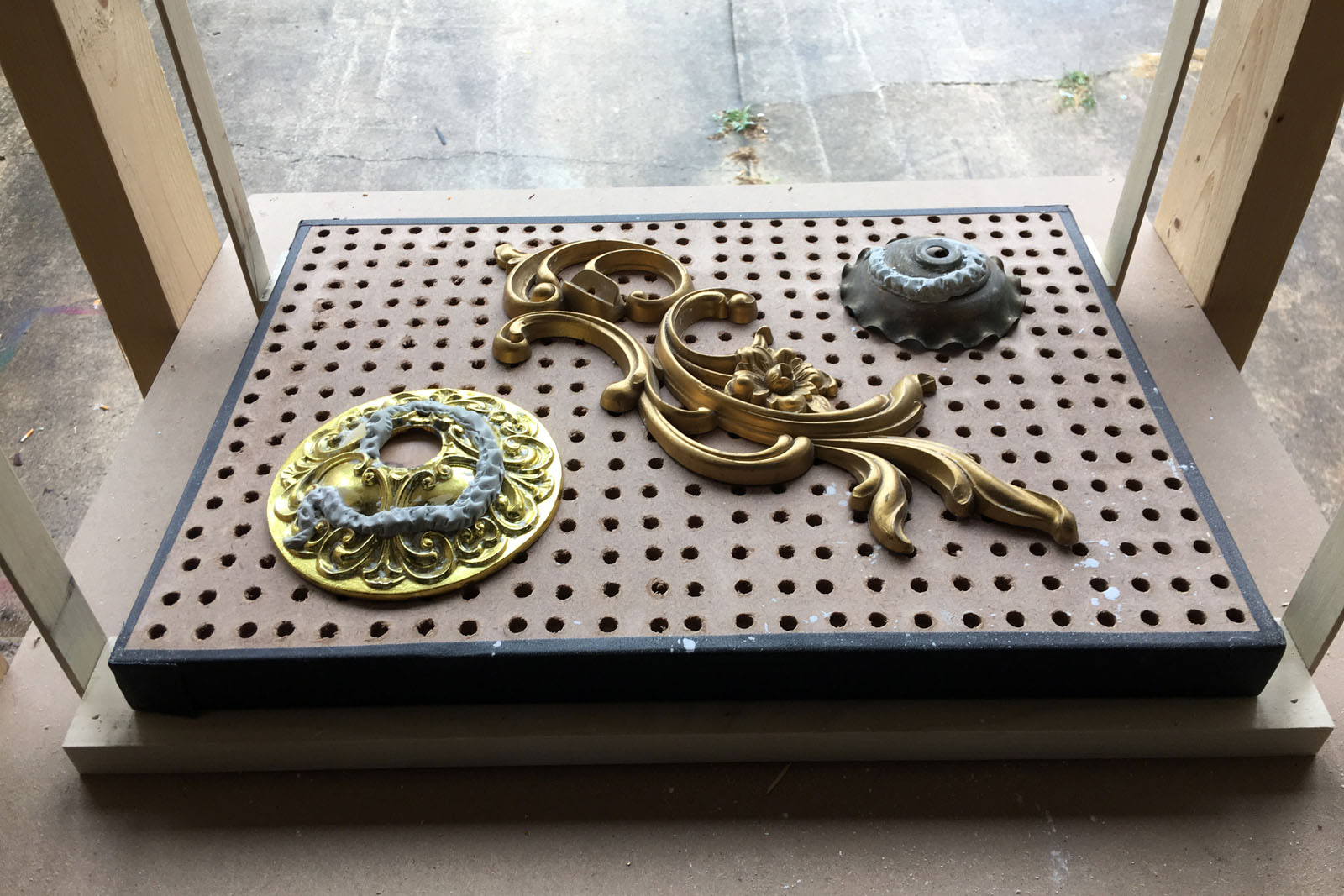

Vacuum forming bucks
Vacuum forming bucks

I needed some bobeches for under the candles and some scrollwork around the ring. I decided to fire up my new vacuum former for the first time and make all those pieces out of plastic. I already had some bobeches and a carved floral scroll-y piece that I was able to use as forms.

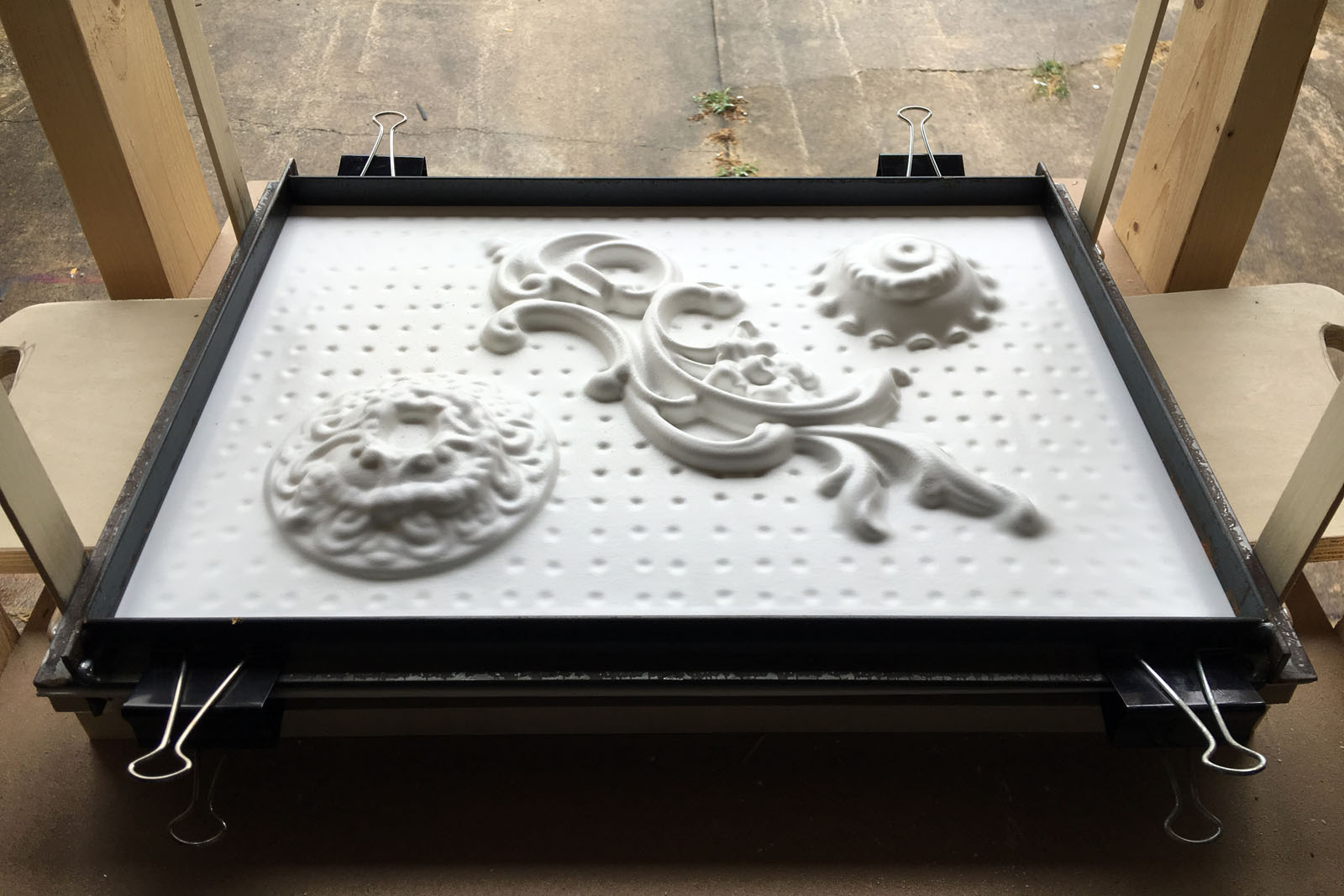

Formed plastic
Formed plastic

Each sheet of plastic fit one bobeche, one scroll piece, and one smaller bobeche for some sconces I was also altering. I pulled nine sheets, and then cut out all the pieces.

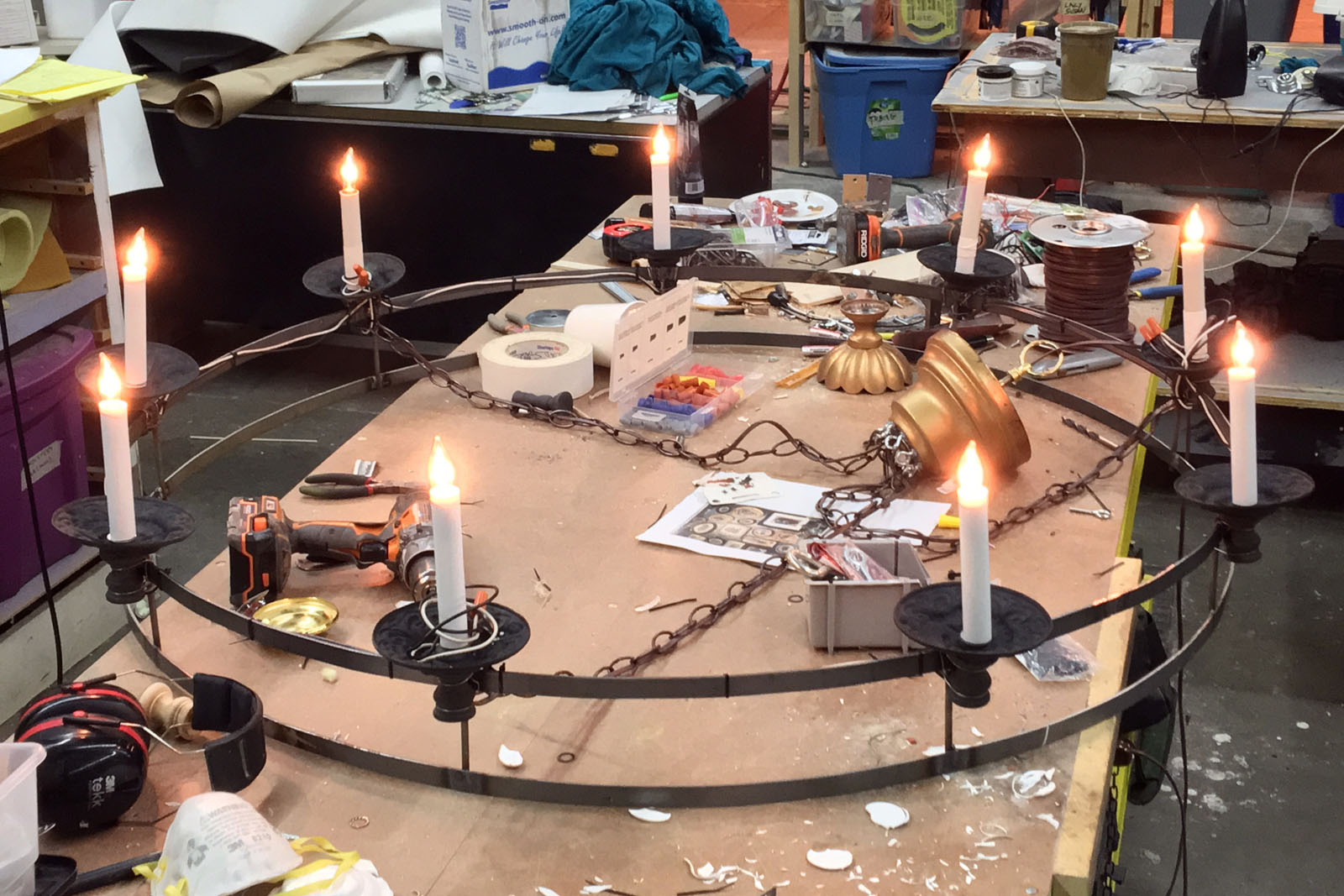

Wiring the lights
Wiring the lights

The candlestick holders were wooden pieces I picked up at the craft store. I attached them to the ring and then wired the whole thing together. The candelabra sockets had small tails of wire, so I wired three together, than ran some lamp cord up the chain to the center hanging piece. With nine candles, this meant I had three pieces of lamp cord running up the chains, and those three were wired together inside the center piece to another longer piece of lamp cord that the electricians could attach a plug to. The bulbs were 7 1/2 watts each, so the whole fixture was only 67.5 watts, which made lamp cord totally fine for this.

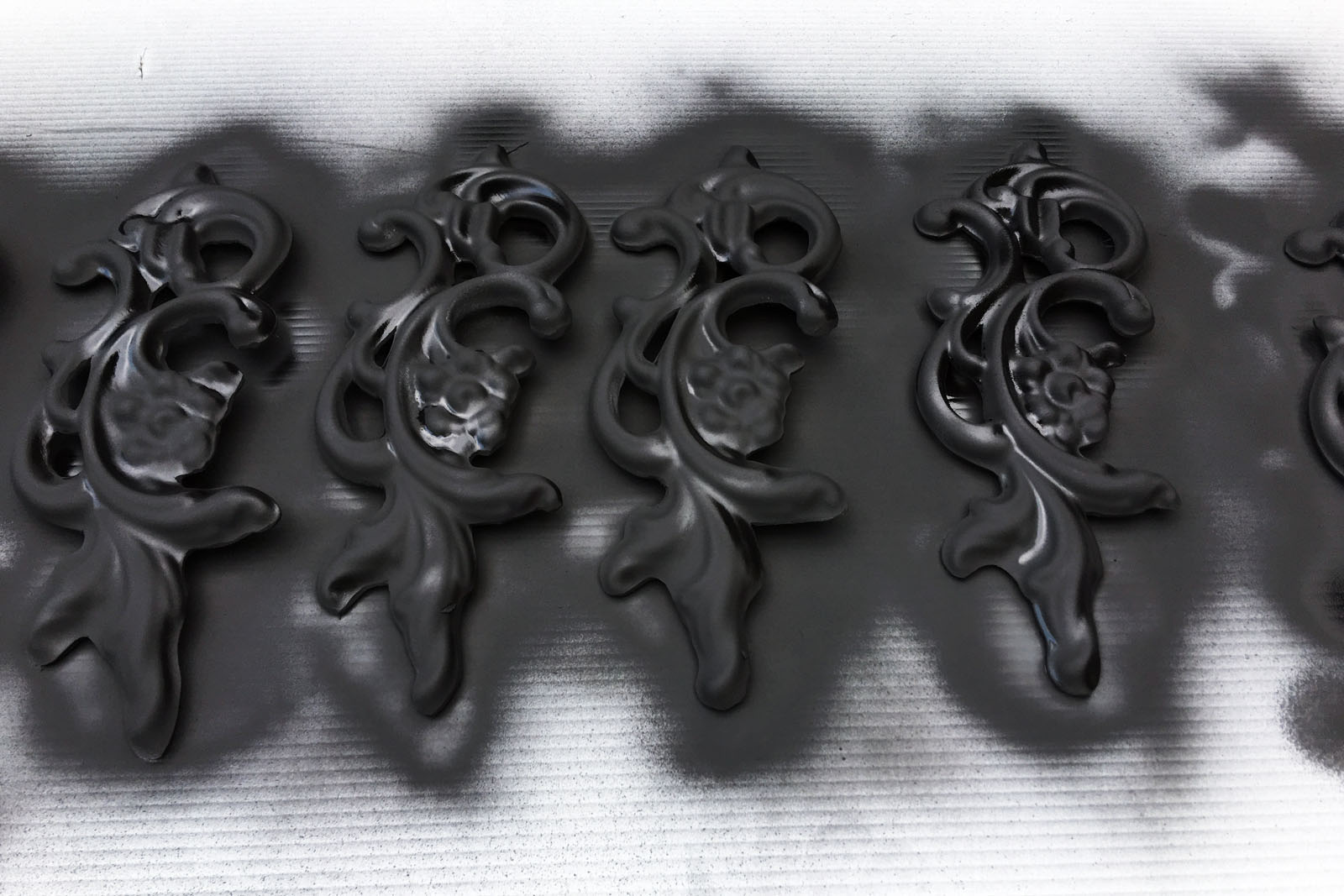

Painted pieces
Painted pieces

I spray painted all the plastic pieces before attaching them. Once everything was assembled, I drybrushed some bronze acrylic paint over the whole thing, and then it got some gold paint highlights.

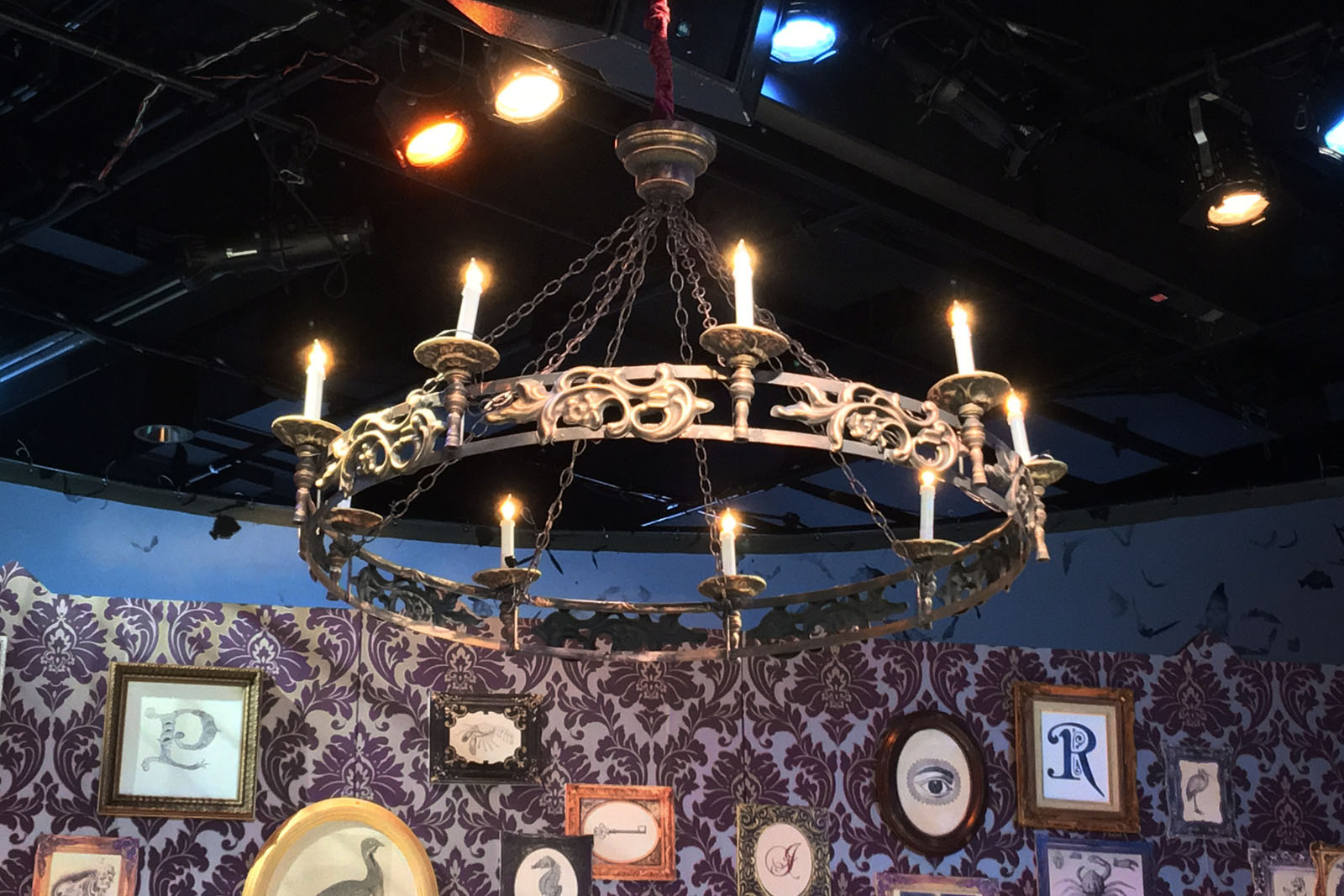

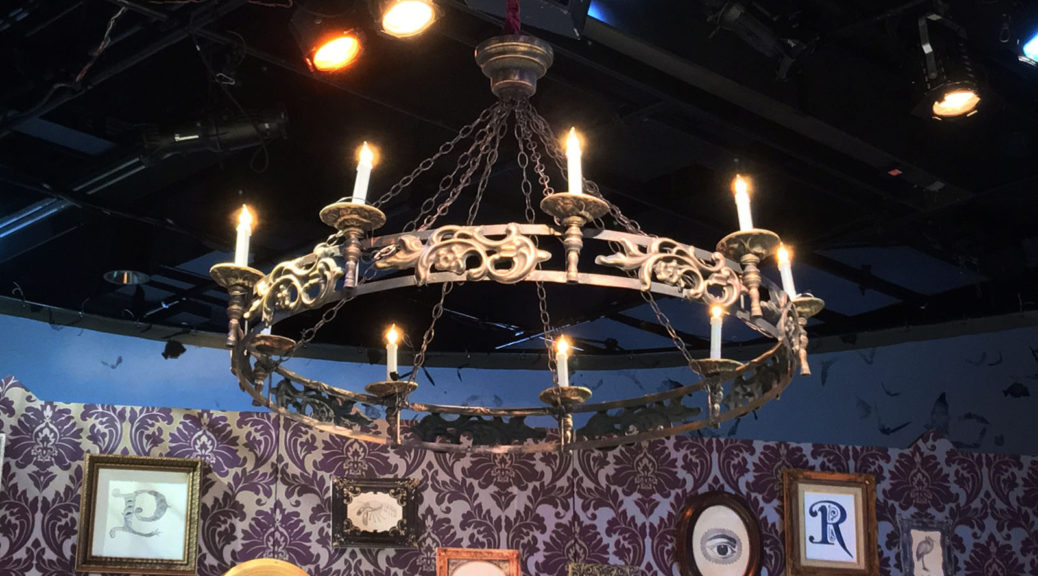

Irma Vep chandelier
Irma Vep chandelier

It’s the spookiest, scariest chandelier ever!

Reprints

Macready Invents the Spike Mark, 1916

The following first appeared in a 1916 book titled “Recollections of a Scene Painter”,  written by an E.T. Harvey. In this section, Harvey talks about the famous English actor William Macready, who dominated the stage from 1818 to 1851. We hear what the carpenters in Philadelphia did after the Astor Place Riots, and we witness what may be the birth of the spike mark.

Macready was before my time, but he had made extensive tours in the United States, and many stories were still in vogue about him. Edwin Forrest, when in England, met with some severe criticism, which he and his friends attributed to Macready’s jealousy. This is generally believed to be without foundation, but it caused a bitter feeling here and when Macready played in New York, the Astor House riots occurred [in 1849], and seventeen people were killed. The same thing was threatened in Philadelphia, when he played in the Arch Street Theatre. The second night the mob was expected to reach the stage, and the old stage carpenter, Charley Long, told me many years afterward, that it was arranged to turn out the lights and open up the sectional stage, which would have thrown the mob in the cellar. The men stood all ready to do this. The crisis, however, was averted by the coolness and courage of Macready himself. But it was said the big chandelier in front of the theatre was filled with missiles thrown at him.

Many stories were in vogue to show his exactness of method. A message delivered to him on the stage had to be given on a certain spot, and when the actor playing the messenger had failed several times at rehearsal, Macready had a mark put upon the stage where he should drop on his knees to deliver it. At night, it was said, the actor went groping all over the stage to find the mark.

An interesting thing that I believe to be true was pointed out to me at the St. Charles Theatre, New Orleans. (The St. Charles was the historic theatre of New Orleans). Near the prompter’s stand were a lot of jagged holes in the brick wall; these were said to have been made by Macready, with a dagger in each hand, to get himself in the nervous tremor as “Macbeth,” after he has killed “King Duncan.”

Original Publication: Harvey, E. T. Recollections of a Scene Painter. Cincinnati: W.A. Sorin, 1916. 29. Google Books, 15 Feb. 2008. Web. 5 Sept. 2012.

How-to

Making a Giant Chandelier

1 Comment

The set for 39 Steps at Triad Stage was reminiscent of an old vaudeville theatre. One of the focal points was a massive chandelier overhead. I knew we could never be able to afford to buy a five-foot diameter chandelier, and even if I could find one to rent or borrow, transporting it would be difficult. So I figured we would just spend the time making one.

39 Steps chandelier
39 Steps chandelier

The design of the chandelier made construction simple; it was just three rings with beads of crystals draped between them. I found rolls of garland with acrylic beads, which spared me from having to string them all individually. I took a lot of the individual crystals from another chandelier I had in stock. The arms came from an existing chandelier as well.

I put together a video showing the progression of the build. Though straightforward, it was a very time-consuming prop. Towards the end, I got help from Lisa Bledsoe and DeDe Farrell with attaching all the crystals and getting it wired.

How-to

Chandelier from Romeo and Juliet

As part of the new year, I’m going to be digging through my archives of props I’ve built in previous years. The first one is a chandelier I built for Romeo and Juliet. It was one of my first prop projects in graduate school, and the first prop I built which involved welding.

The first part I made was the body dish. I turned it on the lathe out of poplar. The outside needed to be a specific diameter, as we shall see shortly. I also drilled a hole through the center for the hanging hardware and wires to go through.

Turning the body dish
Turning the body dish

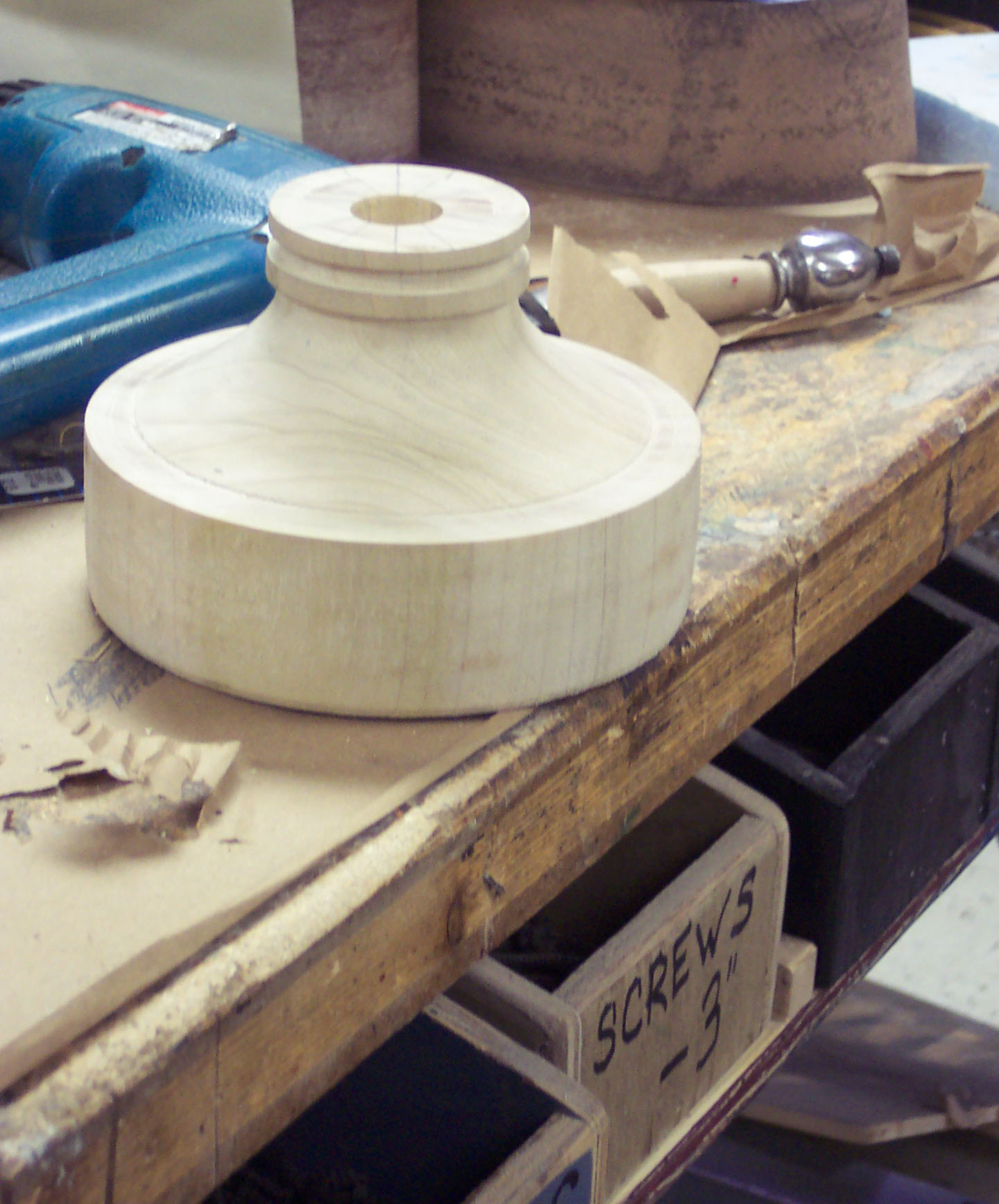

Body Dish
Body Dish

Next I cut a circle out of 3/4″ plywood to use as a template for the main ring. I made that out of several strips of what we call “wiggle wood”, which is a bendable plywood. I wrapped one layer around the circle, then glued another layer around the first one, with the seams offset so they would hold the circular shape. I added a thinner strip to the top and bottom to mimic molding.

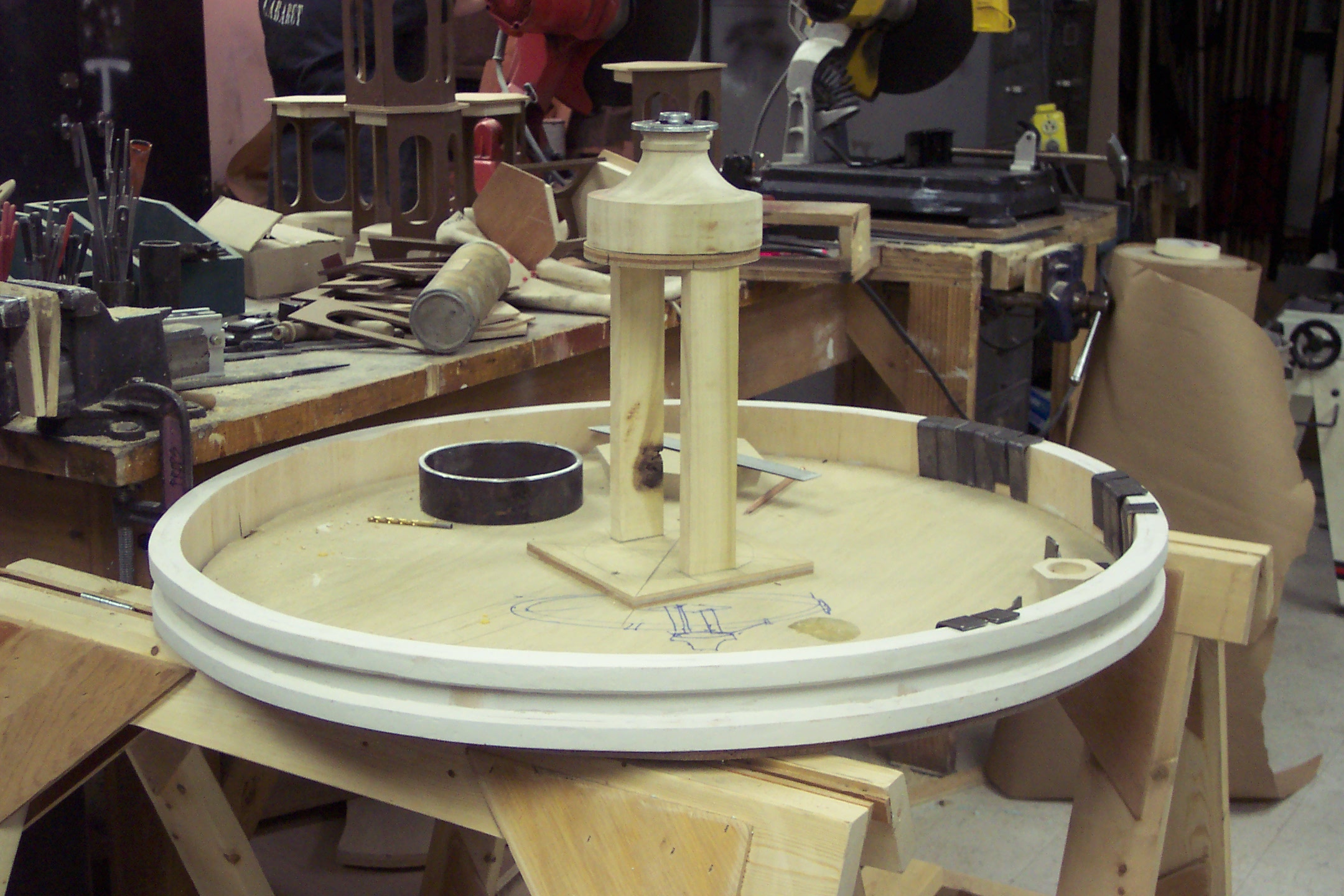

The chandelier in the jig
The chandelier in the jig

I left the chandelier in the jig and marked the center of the circle template. I then added a little stand with a smaller circle on top, also centered. I placed the body dish on top of that. This ensured that the body dish was centered within the ring, level, and at the correct height above the ring.

See that metal ring in the above picture? That is why I needed my body dish to be a specific diameter; the ring needs to sleeve on the outside of it. I cut the ring from a section of large pipe that was laying around. On the right side of the picture, you can see some metal brackets bunched together. These will be spread evenly around the wiggle wood ring and hold the cups for the candles. They will then have a metal rod welded to them, with the other end welded to the metal ring on the body dish.

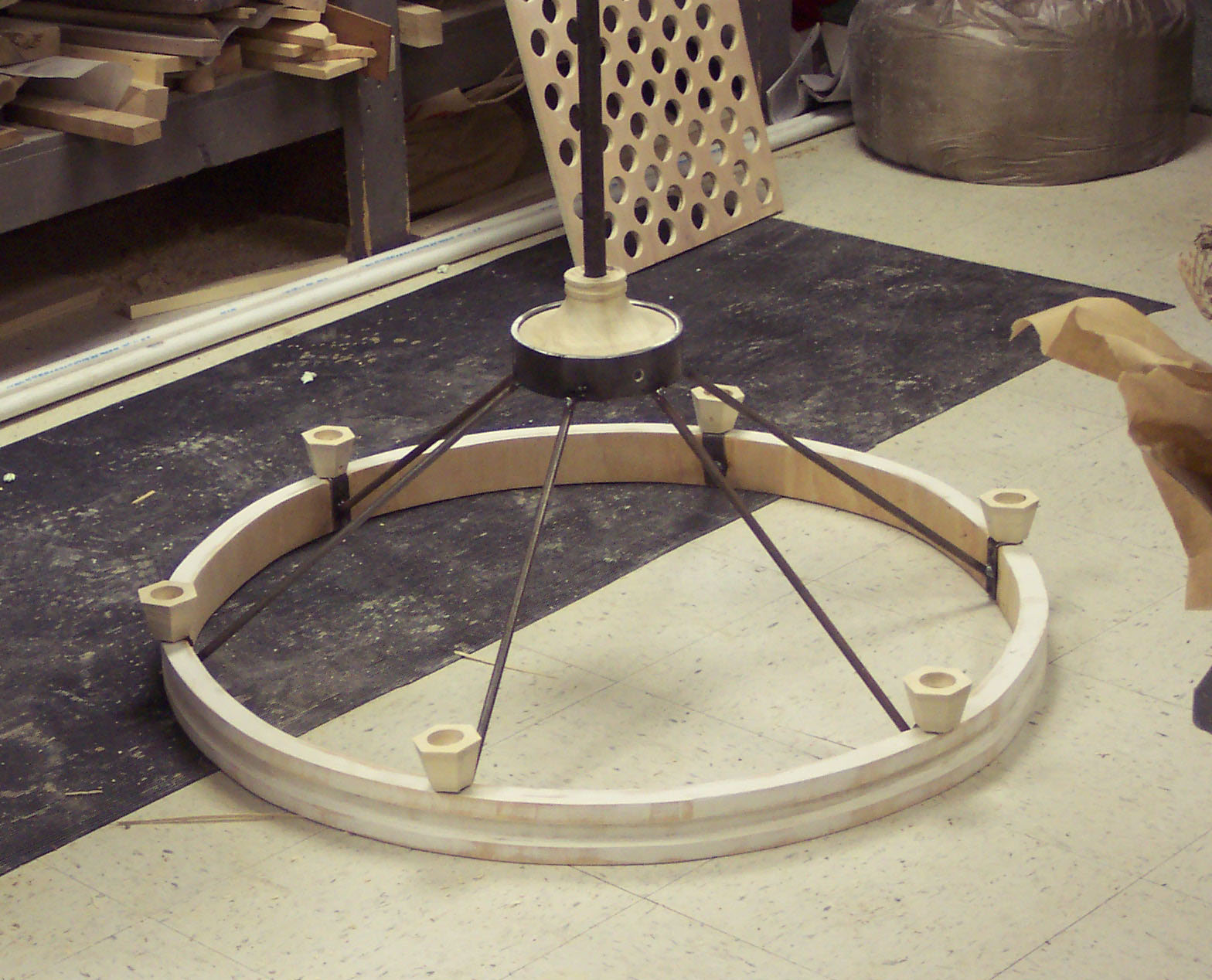

The chandelier after the welding is done
The chandelier after the welding is done

Ta-da! I next ran wires out the bottom of the cups, along the rods, and up through the center. The only thing left to do was glue the electric candles into the cups, which you can only do with a bushy beard.

Gluing the candles in
Gluing the candles in

Actually, what I meant to say was that the only thing left to do was hang a big disco ball from the center, because every chandelier needs a disco ball.

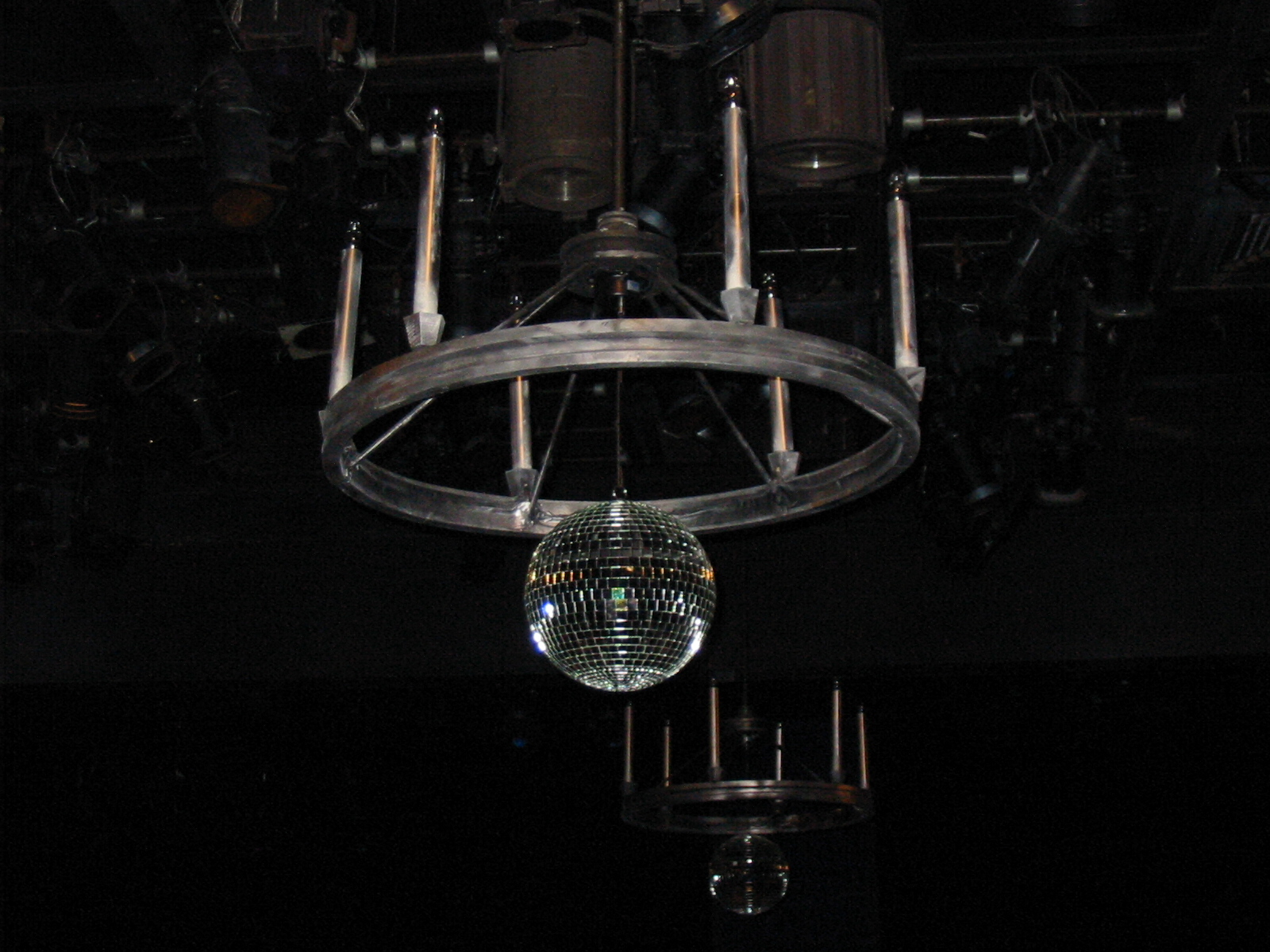

Final Chandelier
Final Chandelier

Notice in the picture that I made more than one chandelier. The template and jig not only allowed me to get all the shapes and spacings correct, it also enabled me to duplicate the same prop without having to remeasure everything.
